Model: SL-TSP-W-3D
Our independent 3D five-axis spray painting machine features an intelligent 3D visual scanning system, working with a flexible spray painting arm and two auto-rotating, turn-over working tables to deliver a perfect spray on various shaped products.
Application Materials:
Application Coatings:
Custom spray painting machines of different sizes are available for various products, and the parameters will vary accordingly. Please contact us.

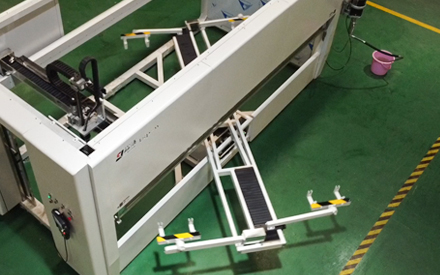

The new spray painting machine is equipped with two rotating workstations, enabling simultaneous loading/unloading of workpieces, 3D scanning, and automated spraying for non-stop operation. With an 8-hour workday, only 1 or 2 general workers are needed to produce 200-300 m² of high-quality products, delivering 50% higher efficiency than traditional manual spraying.

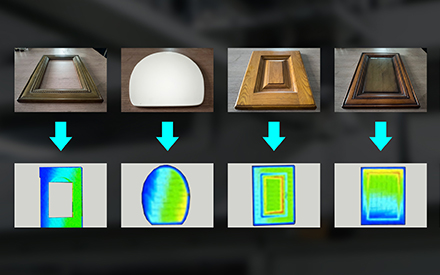

Designed for effortless operation, this brand-new spray painting machine features an external, independent scanning axis that fully auto-scans product data (position, dimensions, contours, internal voids). It effortlessly recognizes all workpiece shapes (rectangular, polygonal, circular, or custom with undulating curves) and auto-generates processing programs, with zero manual intervention.

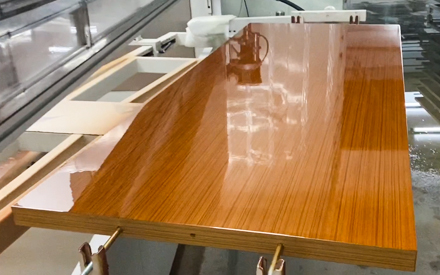

One of our top-recommended spray painting machines, it features premium-brand hardware and state-of-the-art software control systems. Via multi-axis linkage technology and simulated manual gun fanning, the spray gun easily performs human-like movements. It delivers outstanding coating quality in batch production for various irregular-shaped and thick-edge workpieces.

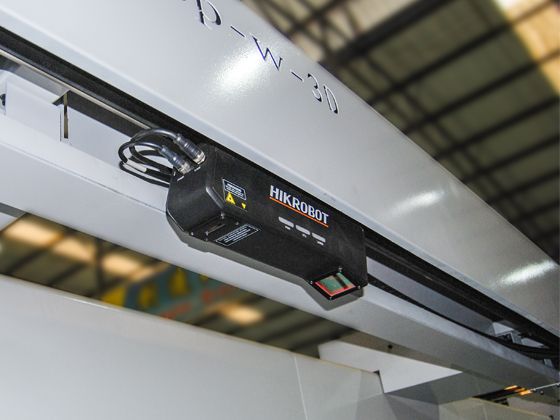

HIKVISION's 3D scanning camera and intelligent control system work in tandem to accurately detect workpiece contours and positioning in real time, while dynamically adjusting the spraying paths for complex-shaped components.

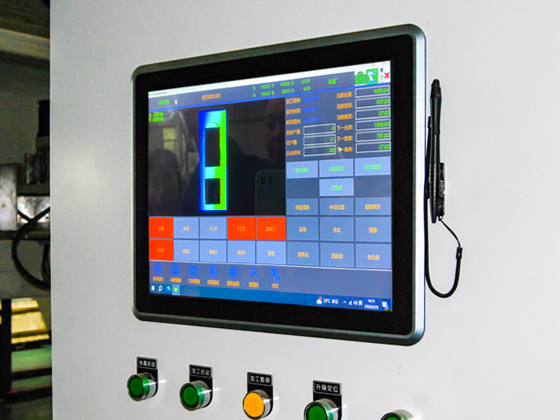

The color, responsive touchscreen intuitively displays the shape, data, and operational status of scanned workpieces, thereby simplifying complex procedures. It supports graphic saving, batch file editing, copy-paste and USB connectivity.

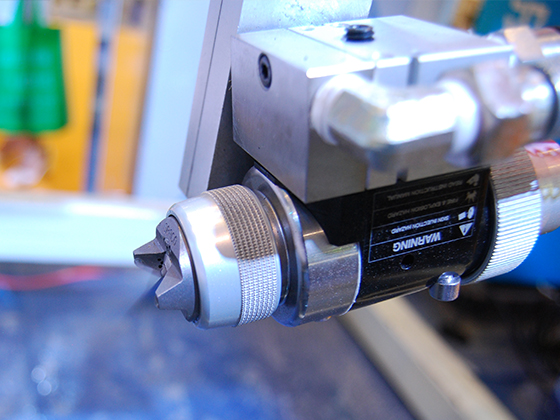

GRACO's adjustable medium-pressure air-mix spray gun, a world-renowned premium brand product, features uniform atomization and soft spraying. It minimizes overspray rebound, and achieves superior coating quality while saving paint.

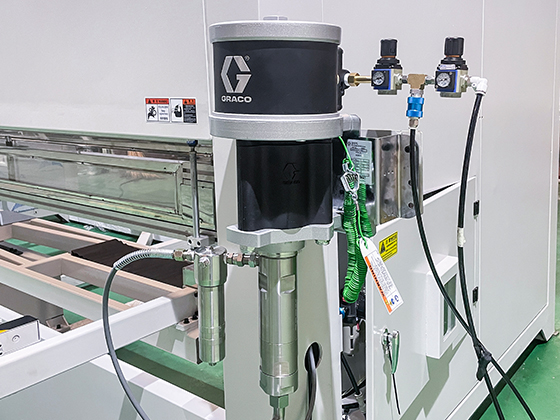

The durable GRACO Merkur plunger pump features a 30:1 pressure ratio, with fast switching and recovery performance. It delivers a uniform, thick coating and effectively prevents spray unevenness caused by pressure fluctuations.

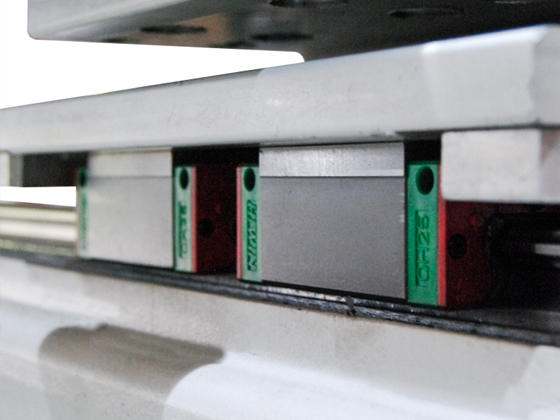

HIWIN's quiet, heavy-load straight guide rails ensure fast spraying, long-distance operation, and smooth, stable work for 24 hours. The ISHAN automatic lubrication device regularly injects fresh lubricant and removes waste, ensuring optimal rail performance.

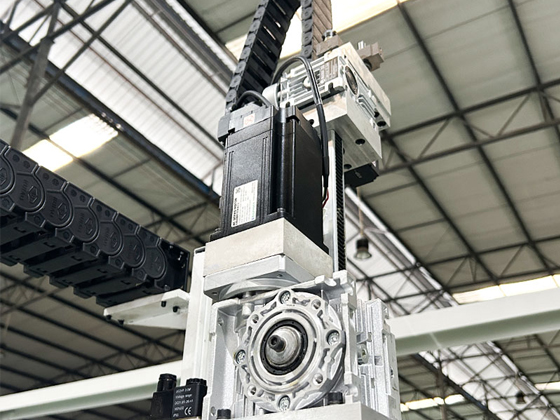

The 5th-generation fine-integrated spray head reduces the number of wire connections, upgrades the traditional A- and B-axis structure, and increases the spray head's load-bearing capacity, making spray motion lighter and maintenance easier.

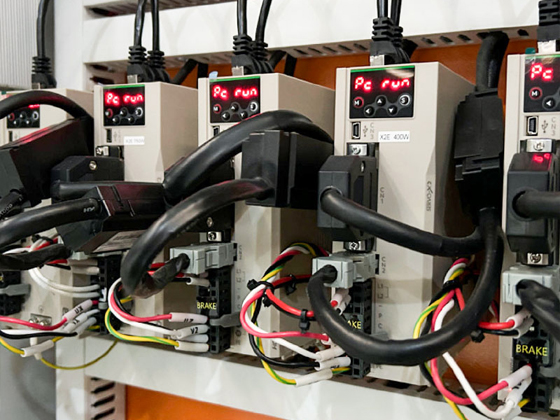

All axes are driven by independent servo motors with absolute-value control, ensuring accurate spray motion and speed control, whether operating independently or cooperatively, reducing programming effort and potential faults.

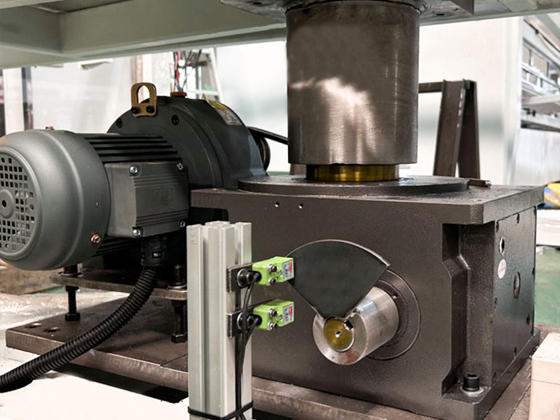

The motor cooperates with fine cam indexers, enabling the working table to rotate smoothly, quietly, and stably. The damping mechanism slows down at the beginning and end stages to ensure the carried products maintain their positions.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.
Customize spray painting machines to fit the dimensions of your products and spaces.

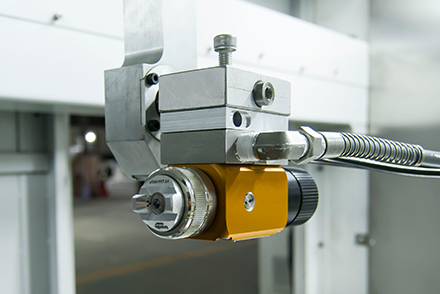

Customize spray painting machines to fit different coatings and budgets.
Customize spray painting machines to fit different coatings and budgets.
Customize spray painting machines for different products and applications.
Customize spray painting machines for different application requirements.
Customize spray painting machines to optimize electricity consumption across different countries.
