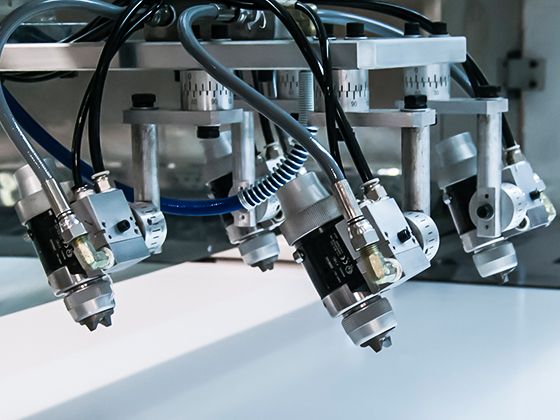

Eight GRACO Air Mix Spray Guns
The eight adjustable GRACO middle-pressure air-mix spray guns deliver consistent atomization and smooth spray, boost paint transfer efficiency, minimize paint mist rebound, and ensure superior quality.

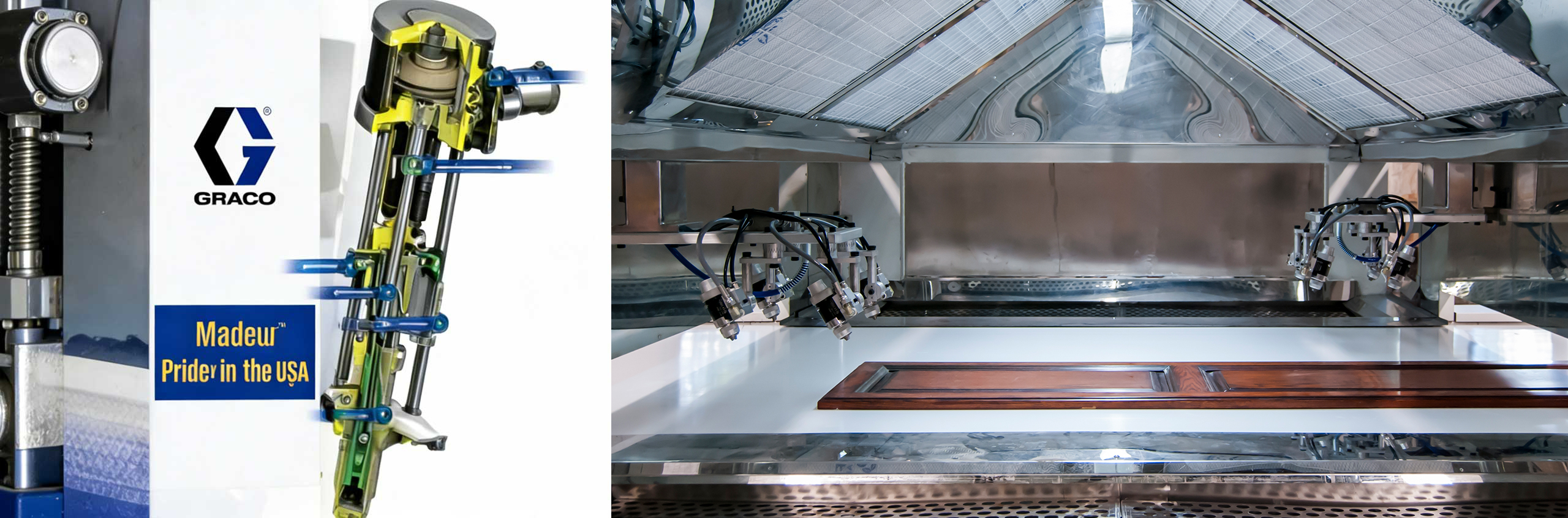

Reciprocating Spray Painting Machine
Model: SL-TSWP-W
Integrated with a spacious paint booth, the spray painting machine is equipped with eight spray guns mounted on two horizontal axes that can run in the same or opposite directions. It features a complete positive-pressure air system, automatic belt cleaning, and paint-recycling functions, delivering a fully automatic coating process and superior coating results.
Application Materials:
- Wood, Veneer, MDF, Glass, Metal, Plastic
- Marble, Ceramics, Special material, etc.
Application Coatings:
- UV, PU, PE, NC, AC, Water-based paint
- Fluorocarbon paint, Glue, Special paint, etc.
Standard Parameters:
Custom spray painting machines of different sizes are available for various products, and the parameters will vary accordingly. Please contact us.
Spray Painting Advantages

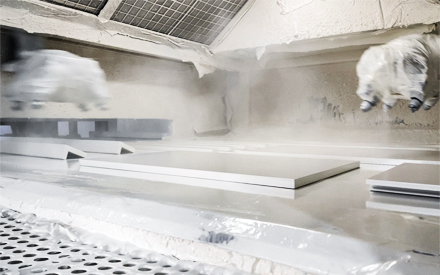

High Compatibility
The spray painting machine is compatible with nearly all base materials that need a consistent color on both the top surface and the four edges. It works well with the most popular coatings available in the market. Whether you have a small, personalized order or a large-scale engineering project with identical specifications, the machine can easily handle both types of requests.
Superior Coating Results

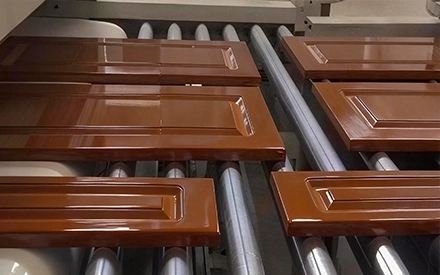

The spray painting machine is particularly adept at handling workpieces with decorative lines and handleless grooves. Through the cross-reciprocating motion of the spray guns, the workpieces are completely covered twice, resulting in a smooth, even coating with no particles, sagging, or orange peel. The rounded edges are smooth and full, giving a superior quality feel.

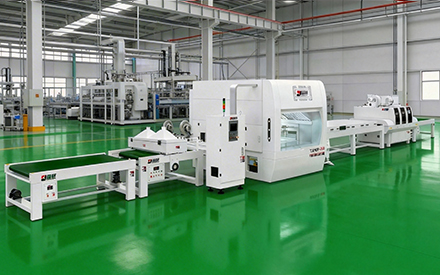

Ultra-Efficient Spraying
The spray painting machine operates at a speed of 3-7 m/min. Over an 8-hour workday, it can produce 1300-3000 m². When combined with UV paint and connected to a dust collector, an IR leveling machine, and a UV curing machine, the system can achieve deep drying of the coating in just a few seconds. This allows the products to move directly to the next process after leaving the line.
Standard Characteristics

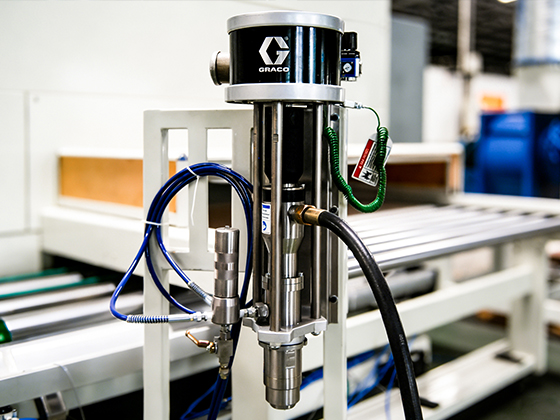

GRACO Bellows Plunger Pump
The GRACO Merkur bellows plunger pump has a 24:1 pressure ratio and a 9L flow rate. It can quickly switch and recover, is easy to rinse for color changes, and produces minimal pulsing to ensure an even spray.

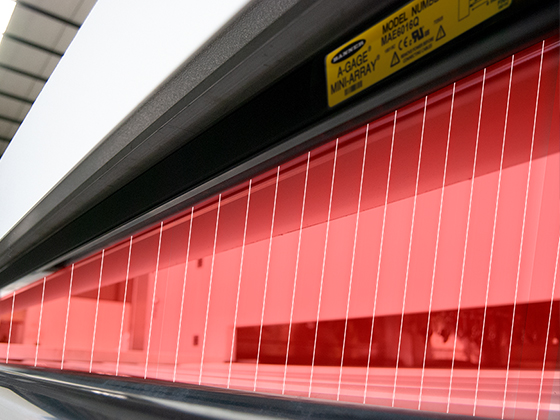

U.S. Bonner Light Curtain
The high-resolution, high-accuracy grating U.S. Bonner light curtain with solenoid valves automatically detects products, controls the spray range, and switches the spray guns.

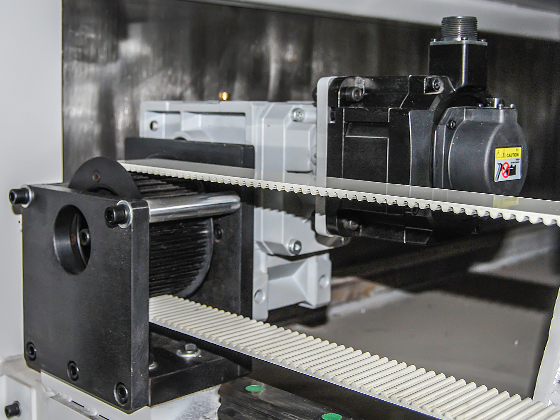

Independent Servo Motors
The two spray painting axes are independently driven by two servo motors and centrally controlled by a PLC system, ensuring accurate spray motion and precise speed adjustment.

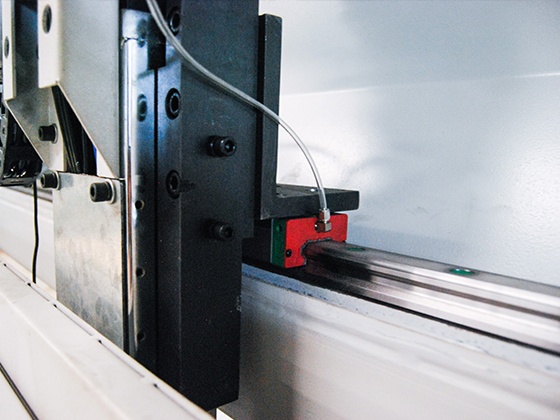

Silent Linear Guide Rai
Two opposing spray axes reciprocate for even painting of moving products. The HIWIN silent linear guide rail features an ISHAN automatic lubrication device that injects fresh lubricant and removes waste, ensuring optimal rail performance.

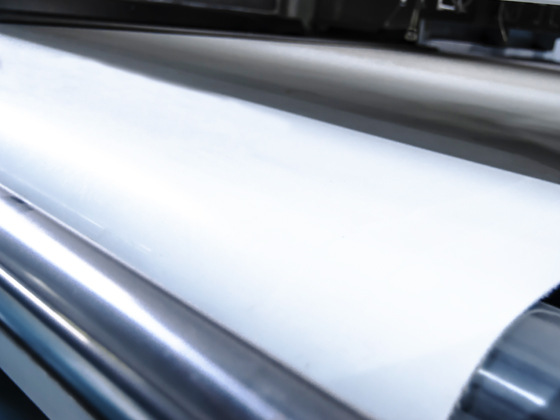

PE Belt Conveyor
The PE belt features high tensile strength, excellent winding, oil resistance, and easy cleaning. Equipped with an automatic correction device and an internal scraper, it ensures stable long-term operation and lasting double-sided cleanliness.

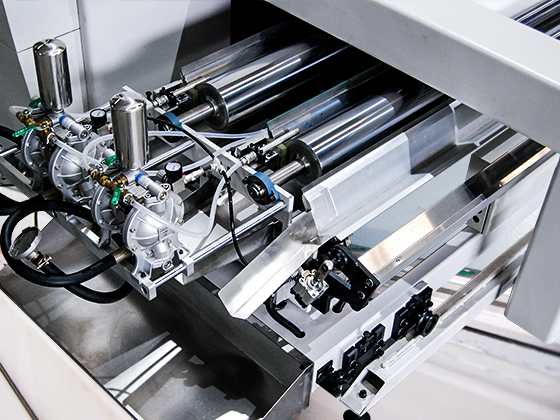

Belt-Cleaning Trolley
At the exit of the spray booth, the automatic belt-cleaning trolley scrapes off excess paint for recycling, then pumps thinner on the stainless steel rollers to wash the running belt in two stages, ensuring it is clean and dry during work.

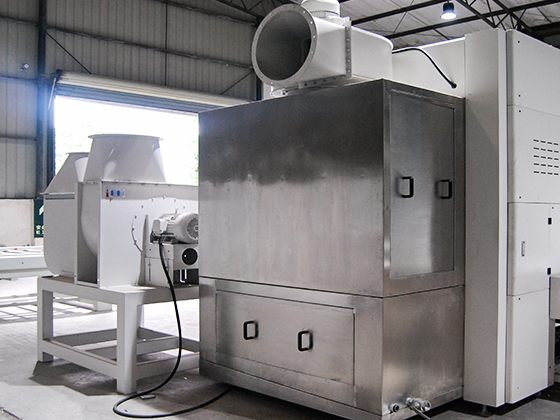

Air Pressure System
Large fan and filter supply ample fresh air from the spray booth top, forming a pressurized airflow to reduce paint mist and collect paint in the back box for recycling and multiple filtration; all filter layers are easily removable for cleaning or replacement.
Customize Spray Painting Machine to Fit Your Products.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.

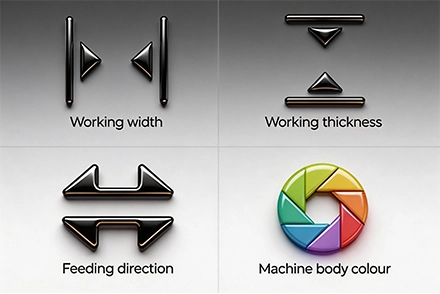

Size and Color
Customize spray painting machines to fit the dimensions of your products and spaces.

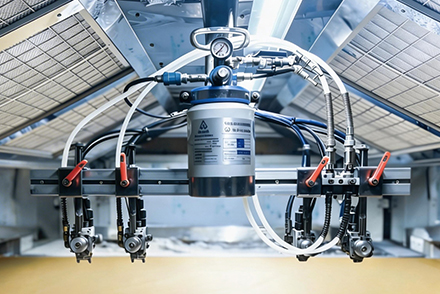

Spray Gun
Customize spray painting machines to fit different coatings and budgets.

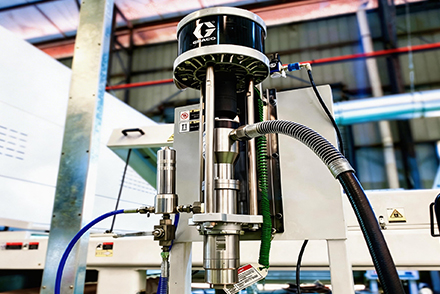

Spray Pump
Customize spray painting machines to fit different coatings and budgets.

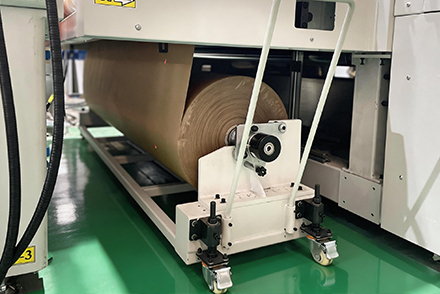

Working Table
Customize spray painting machines for different products and applications.

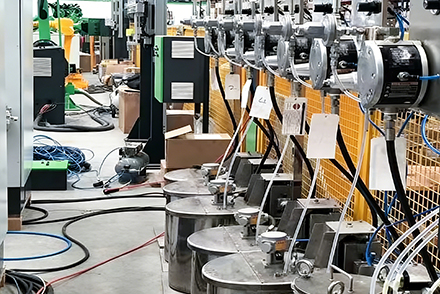

Function
Customize spray painting machines for different application requirements.

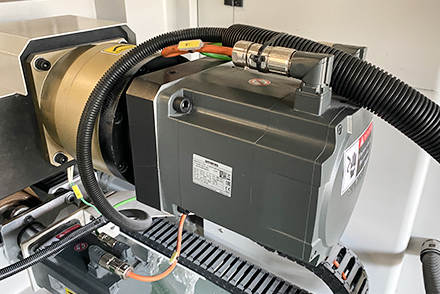

Electrical
Customize spray painting machines to optimize electricity consumption across different countries.
