Model: SL-TS-ROBOT
This robotic painting machine employs a highly flexible six-axis configuration to replicate the dexterous spraying motions of a human arm. It enables all-around, multi-angle spraying for impeccable coating finishes and is ideally suited for 3D, curved, and polyhedral workpieces.
Application Materials:
Application Coatings:
Custom robotic painting machines of different models are available for various products, and the parameters will vary accordingly. Please contact us.

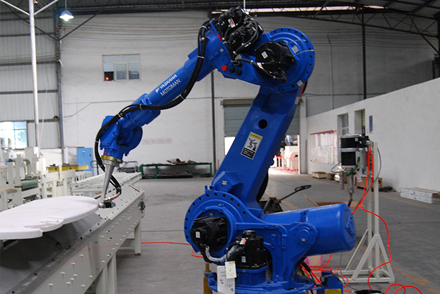

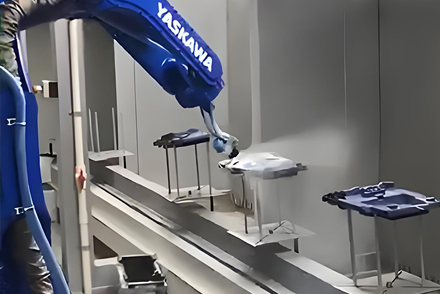

The six-axis structure employs a multi-joint linkage design, allowing each axis of the robotic painting machine to rotate and oscillate independently. Its overall motion trajectory precisely mimics the agile movements of a human arm, enabling complex spraying operations at multiple angles and orientations, including curved surfaces, thereby ensuring uniform paint adhesion across the workpiece.

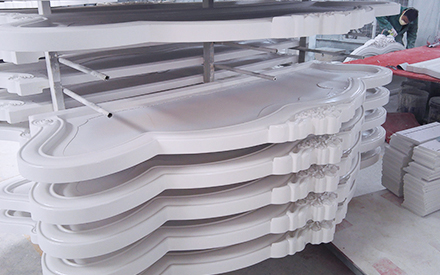

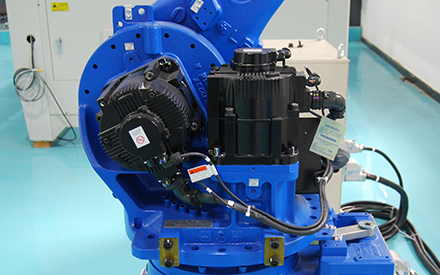

High-precision servo motors independently control the movements of the six-axis automatic spraying system. Paired with a central PLC control system, this guarantees a high level of uniformity in coating thickness and colour consistency—even across different batches of workpieces—thus fulfilling the stringent standards for standardisation and precision in coating quality required by premium manufacturing.

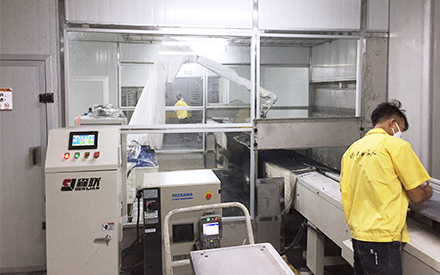

The paints and thinners used in spray painting operations frequently contain VOCs. The robotic painting machine can operate autonomously within enclosed spray booths, requiring only 1-2 personnel to handle remote operation and equipment inspections; this eliminates the need for workers to come into close contact with paints and VOCs, thereby preventing the health risks to humans associated with painting operations.

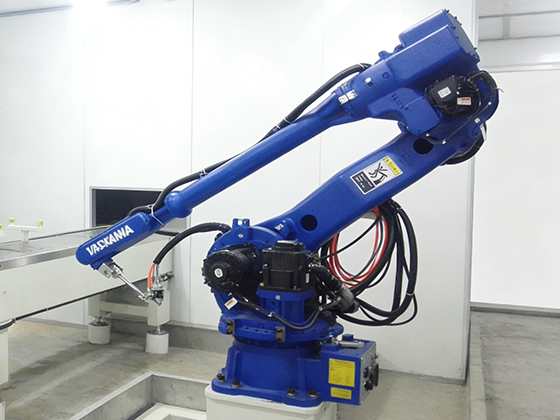

Yaskawa robotic arms boast high flexibility, superior positioning accuracy, fast dynamic response and enduring stability, with protective suits made of premium flame-retardant hermetic materials that deliver anti-contamination and anti-static performance.

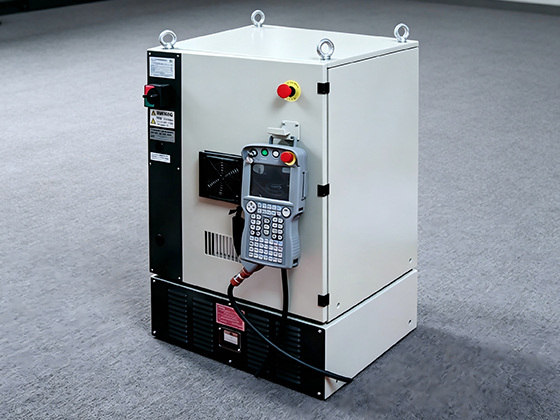

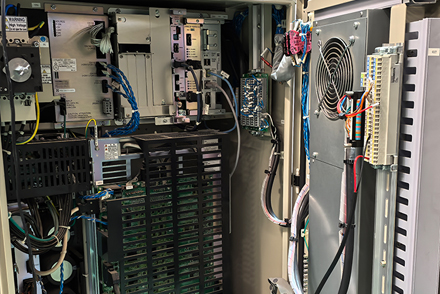

The robotic painting machine is equipped with an independent electrical control cabinet and a Yaskawa handheld visual programming controller; capable of storing over 2,600 processing programs, it offers convenient operation and ease of maintenance.

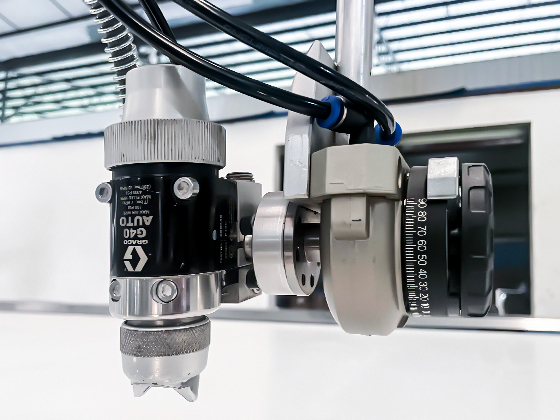

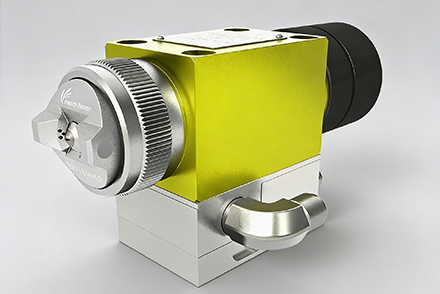

GRACO's adjustable medium-pressure air-mix spray gun, a world-renowned premium brand product, features uniform atomization and soft spraying. It minimizes overspray rebound, and achieves superior coating quality while saving paint.

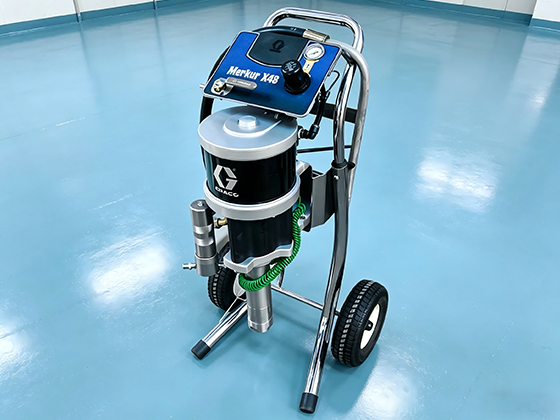

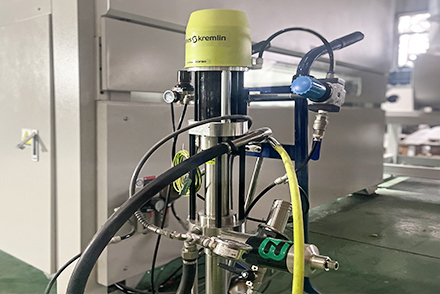

The durable GRACO Merkur plunger pump features a 30:1 pressure ratio, with fast switching and recovery performance. It delivers a uniform, thick coating and effectively prevents spray unevenness caused by pressure fluctuations.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.
Customize robotic painting machines to fit the dimensions of your products and spaces.
Customize robotic painting machines to fit different coatings and budgets.
Customize robotic painting machines to fit different coatings and budgets.
Customize robotic painting machines for different budgets and applications.
Customize robotic painting machines for different products and applications.
Customize robotic painting machines to optimize electricity consumption across different countries.
