Model: SL-TSP-W

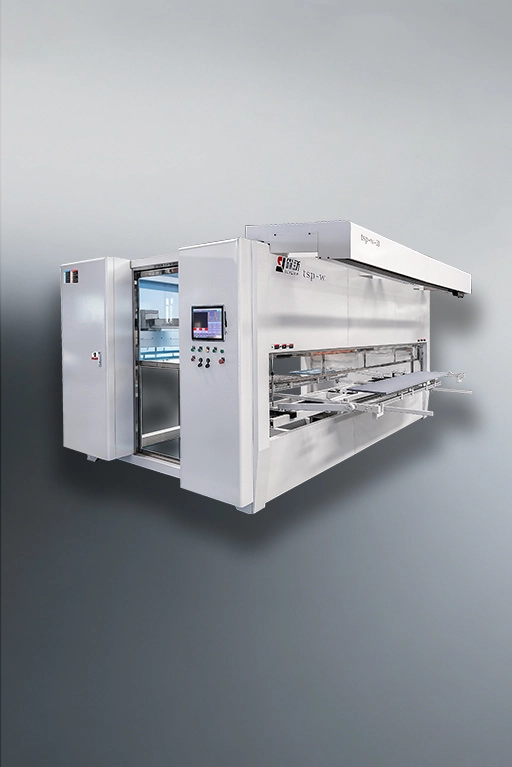

This is an independent automatic spraying machine equipped with an intelligent five-axis spraying system as flexible as a human arm. It works with an automatically rotating, turn-over working table to spray all sides and surfaces of the workpiece, delivering uniform and high-quality results.
Application Materials:
Application Coatings:
Custom automatic spraying machines of different sizes are available for various products, and the parameters will vary accordingly. Please contact us.

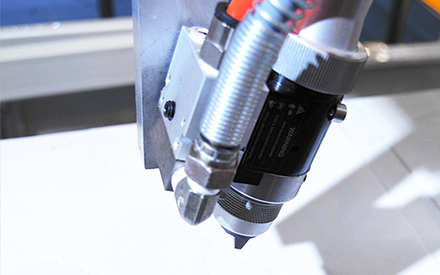

The well-known brand medium-pressure spray gun and durable plunger pump of our spray painting machine provide better atomization, less paint rebound, and a cleaner spraying environment than the manual high-pressure spray gun and diaphragm pump. This results in significantly improved coating quality and 30% less paint consumption compared to manual methods and other manufacturers.

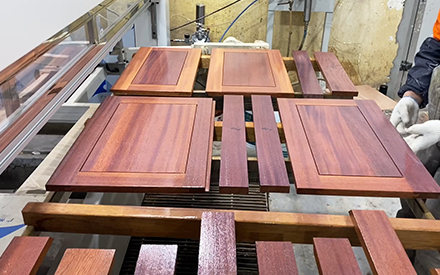

The automatic spraying machine features powerful performance and is widely used in whole-house furniture, decoration, and other industries. It is ideal for automatic spraying of primer or topcoat on doors, door frames, moldings, wall panels, cabinet doors, coffee tables, TV cabinets, display cabinets, and other products, offering distinct advantages, especially for items with thicker edges.
The machine’s high flexibility enables the spraying of complex-shaped products; its robotic teaching function automatically generates processing programs by manually guiding the spray gun’s movement; the auto-cleaning function automatically cleans the spray gun and pipelines, then shuts down and cuts off power after working. All these features make work easier and more efficient.

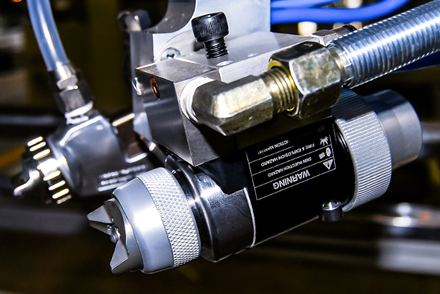

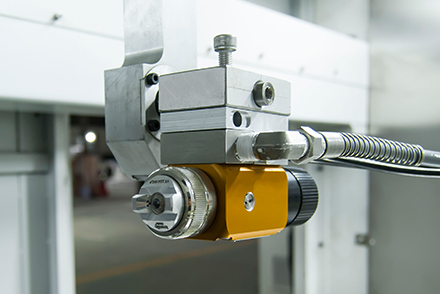

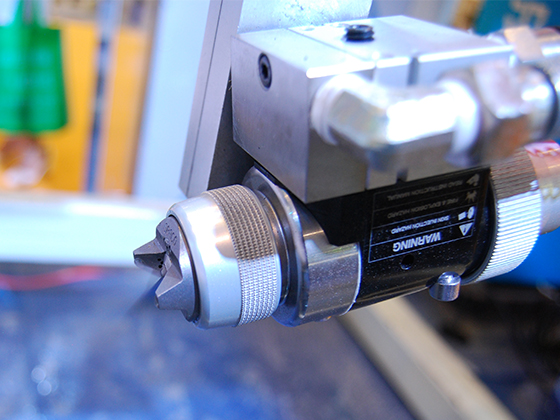

GRACO's adjustable medium-pressure air-mix spray gun, a world-renowned premium brand product, features uniform atomization and soft spraying. It minimizes overspray rebound, and achieves superior coating quality while saving paint.

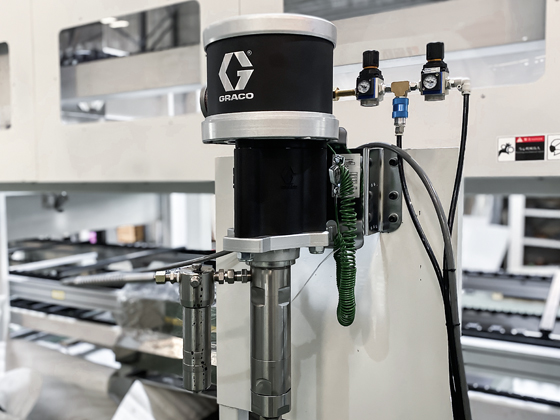

The durable GRACO Merkur plunger pump features a 30:1 pressure ratio, with fast switching and recovery performance. It delivers a uniform, thick coating and effectively prevents spray unevenness caused by pressure fluctuations.

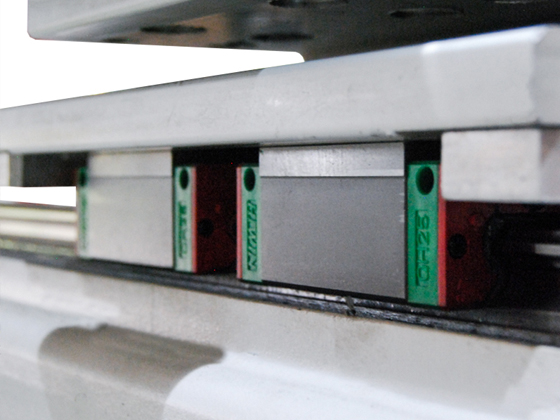

HIWIN's quiet, heavy-load straight guide rails ensure fast spraying, long-distance operation, and smooth, stable work for 24 hours. The ISHAN automatic lubrication device regularly injects fresh lubricant and removes waste, ensuring optimal rail performance.

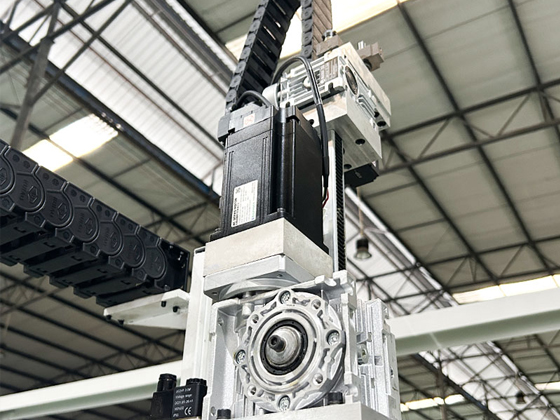

The 5th-generation fine-integrated spray head reduces the number of wire connections, upgrades the traditional A- and B-axis structure, and increases the spray head's load-bearing capacity, making spray motion lighter and maintenance easier.

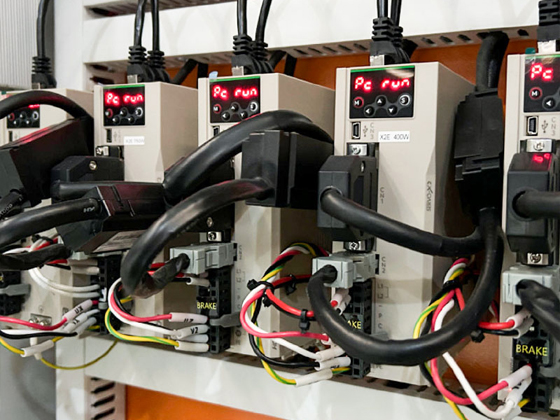

All axes are driven by independent servo motors with absolute-value control, ensuring accurate spray motion and speed control, whether operating independently or cooperatively, reducing programming effort and potential faults.

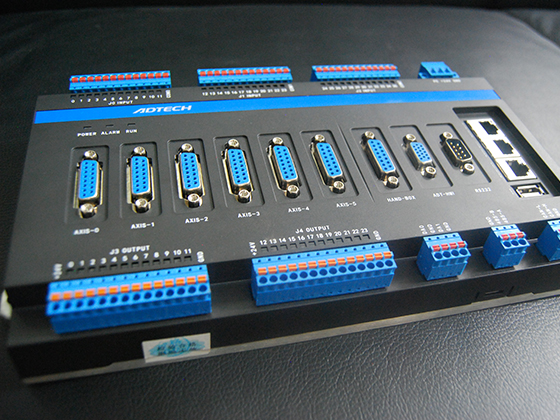

Fitted with professional communication cables, the BMCA206 motion controller delivers faster response and greater stability than traditional PLCs, enabling the spray gun to perform human-like spraying movements with speed and precision.

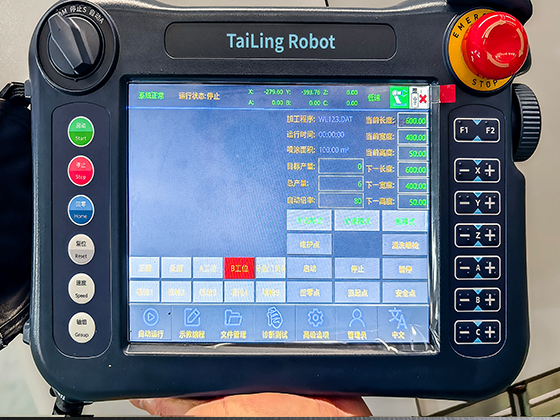

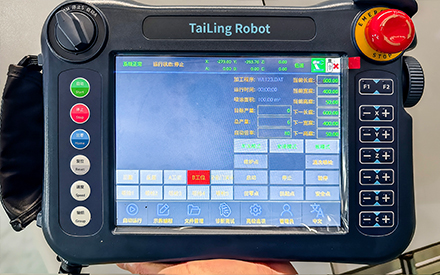

Instead of a fixed control panel, this intelligent handheld HMI allows the worker to move at different angles to conveniently observe the paint booth and robot teaching, and supports batch file modification, paste, copy, and USB disk functions.

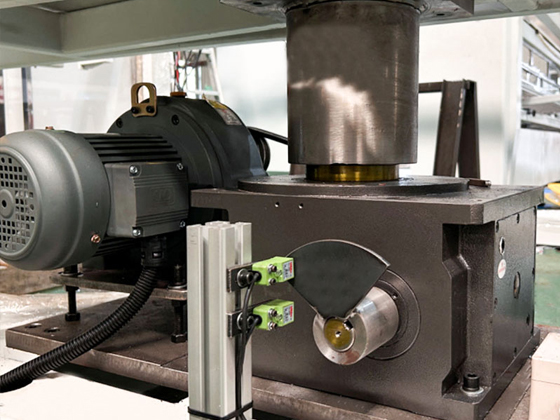

The motor cooperates with fine cam indexers, enabling the working table to rotate smoothly, quietly, and stably. The damping mechanism slows down at the beginning and end stages to ensure the carried products maintain their positions.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.
Customize automatic spraying machines to fit the dimensions of your products and spaces.
Customize automatic spraying machines to fit different coatings and budgets.
Customize automatic spraying machines to fit different coatings and budgets.
Customize automatic spraying machines for different products and applications.
Customize automatic spraying machines for different application requirements.
Customize automatic spraying machines to optimize electricity consumption across different countries.
