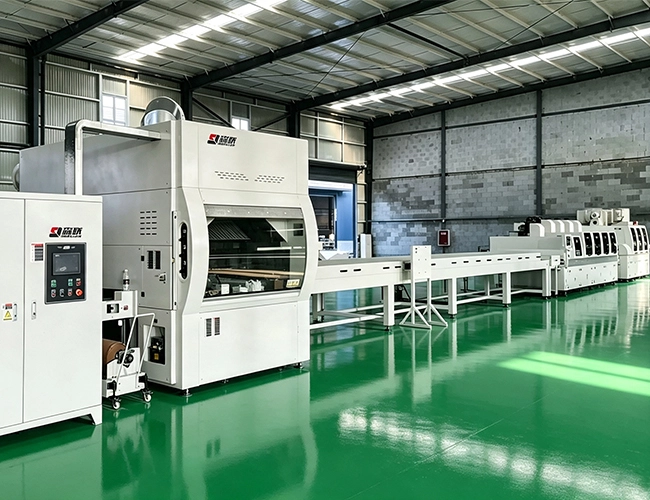

Soft-Touch Excimer UV Coating Line

Soft-touch excimer UV coating lines deliver remarkable coating performance, featuring a super-matte, skin-feeling finish, along with functional properties such as 4H hardness, self-repair, stain resistance, and high-temperature resistance.

Popular Soft-Touch Excimer UV Coating Line

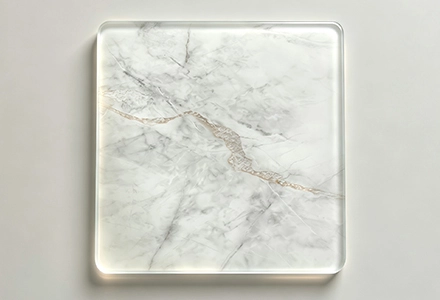

The soft-touch excimer UV coating line has become a popular advanced technology in the furniture, glass, and decorative wall panel manufacturing industries in recent years because it can give various raw materials an extremely matte surface effect, a delicate touch like baby skin, and special coating properties, including anti-fingerprint, anti-stain, scratch resistance, yellowing resistance, and self-repair.

Compared to nitrogen-based excimer technology, which requires long-term use of high-purity nitrogen, this nano-excimer UV coating line has a much lower equipment cost. It can start working simply by being powered on, giving it a greater advantage in terms of usage and maintenance costs.

The Workflow of Soft-Touch Excimer UV Coating Lines is as Follows:

Materials Feeding: We typically use manual labor or automatic loading machines to perform this task.
Surface Treatment: The methods for surface treatment vary depending on the material. We usually use dust removal or water-cleaning equipment to keep the material surface spotless.
Topcoat Roller Coating (Optional): For flat products, UV topcoat roller coating is the ideal choice, as it can evenly apply paint to the workpiece surface with an adjustable coating amount of 10-80g per square meter in one pass.
Topcoat Spray Painting (Optional): For shaped products, reciprocating spraying of a UV excimer topcoat can achieve a high-quality coating with uniform color on the edges and surfaces, with an adjustable coating amount of 120-150g per square meter in one pass.
UV Leveling: Heating promotes paint leveling and prevents coating defects, such as waviness, bubble, and orange peel.
Nano Excimer UV Curing: Combining an LED cold light source and 172nm UV excimer reduces surface and edge gloss, resulting in a super-matte, soft-touch, skin-like effect.
3D UV Curing: UV coatings rapidly polymerize and crosslink under ultraviolet irradiation via photoinitiators, completing the curing process in just a few seconds and significantly reducing drying time.
Finished Products: Similarly, we can use manual labor or equipment to complete the unloading work. And after the soft-touch excimer UV coating line, the products can proceed directly to the next process without waiting.

Case Videos

LEARN MORE

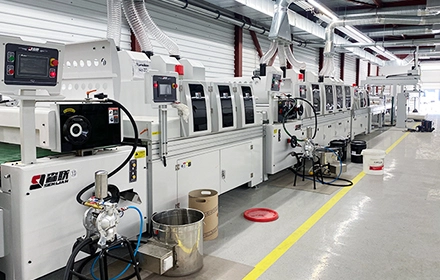

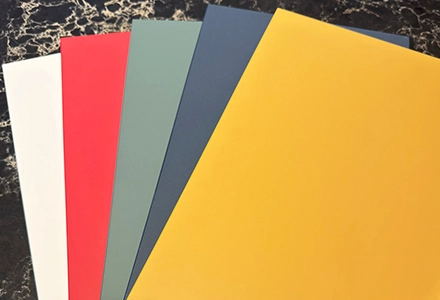

MGO Board Excimer UV Coating Line

This soft-touch excimer UV coating line uses roller-coating for UV putty, primer sealing, and soft-touch topcoat, producing MGO boards with a baby-skin-like feel for interior walls.

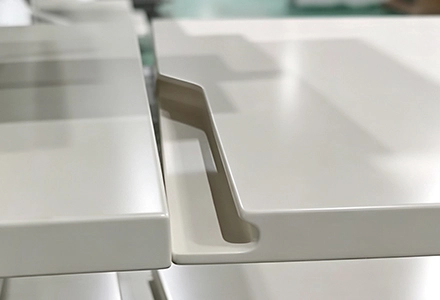

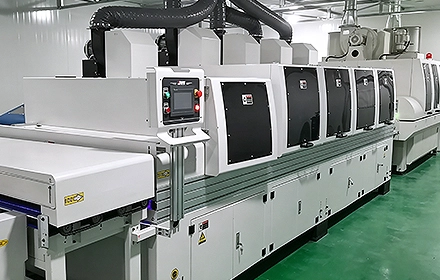

Cabinet Door Excimer UV Coating Line

This excimer UV coating line uses reciprocating spraying to deliver a consistent, uniform coating and matte finish on the surfaces, edges, and handles of cabinet doors, meeting high-end furniture standards.

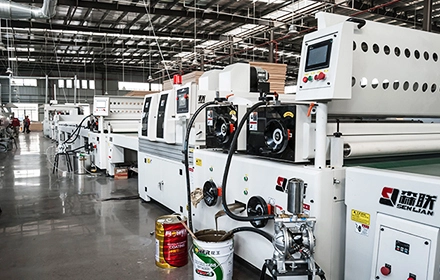

Furniture Excimer UV Coating Line

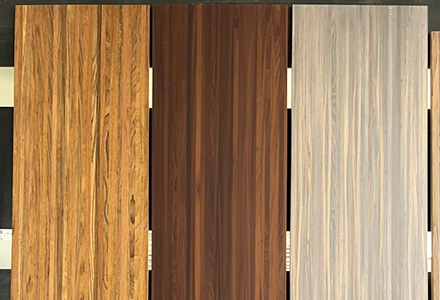

This soft-touch excimer UV coating line integrates processes such as water-based coloring, primer roller coating, and soft-touch topcoat roller coating. The final wood-veneer products are used for hotel furniture.

Standard Configurations

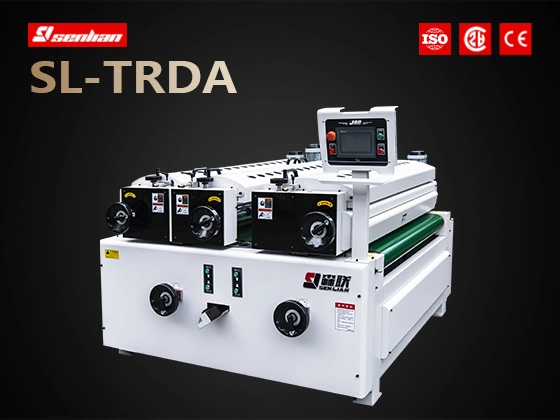

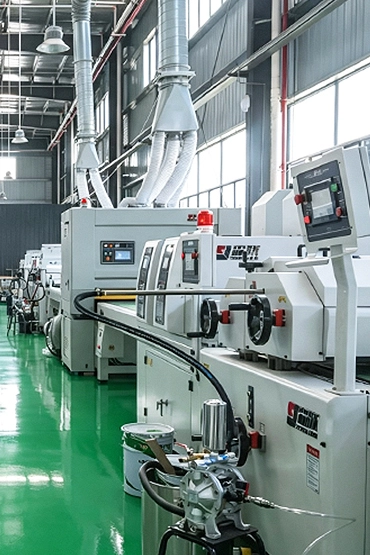

Roller Coating Machine (Optional)

The roller coating machine coats flat products using a rubber and steel roller in one or multiple coating units. It pumps and recycles liquid paint for even coverage. All components are controlled by frequency conversion, and the HMI touchscreen allows intuitive operation.
Click Here for More

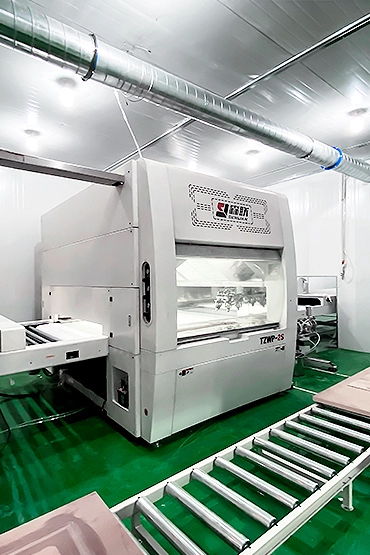

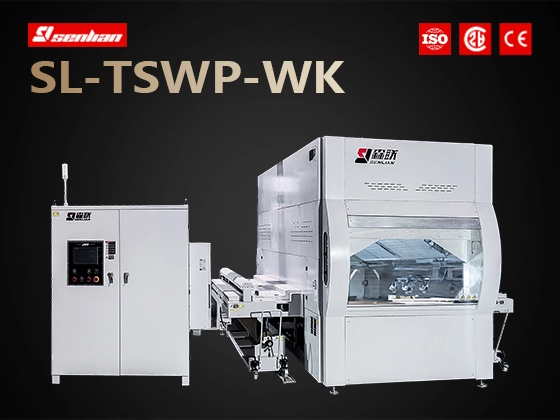

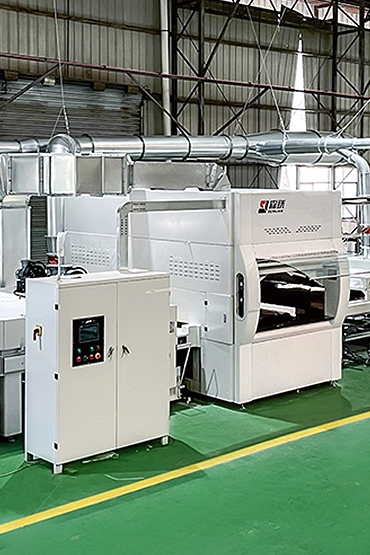

Spray Painting Machine (Optional)

Integrated with a spacious paint booth, this machine features a reciprocating spray painting structure, a complete positive-pressure air system, and a clean-free conveyor belt, delivering a fully automatic coating process and superior coating results on shaped workpieces.
Click Here for More

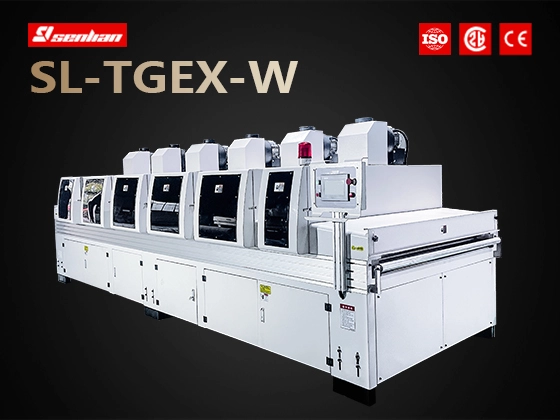

Nano Excimer UV Machine

The nano excimer UV machine integrates specialized LED UV lamps and nano-excimer UV lamps to rapidly cure UV coatings on both the surface and edges of a substrate, imparting a delicate, soft-touch feel and a premium ultra-matte finish.
Click Here for More

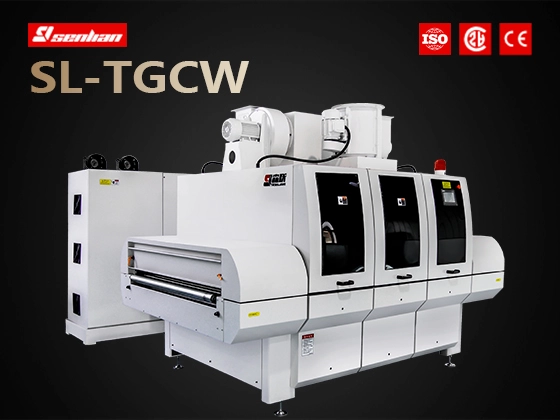

3D UV Curing Machine

This machine is equipped with two horizontal UV lamps on top, two UV lamps on the sides, and one UV lamp at the back under the conveyor; all irradiation angles and ranges are adjustable to ensure the UV paint on all angles of the workpieces dries immediately.
