Model: SL-FCZF

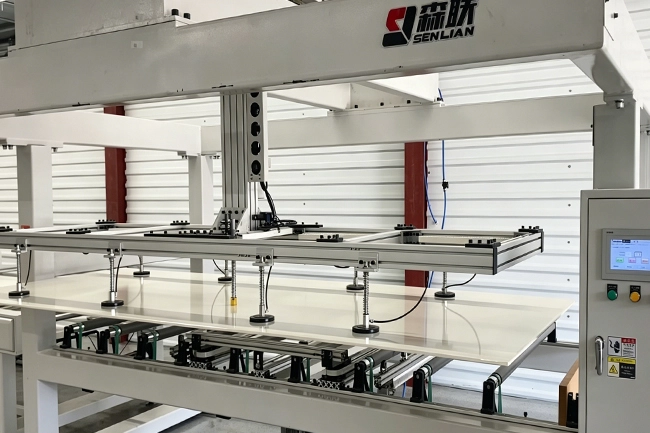

The frame-type loading and unloading machine is based on a four-legged frame structure and uses pneumatic, double-row, fully computer-controlled suction cups to accurately locate the board’s center position. The suction cups press the board, instantly evacuate air to form a vacuum, firmly adhere to it and quickly lift it along the track. At the destination end, the vacuum state is broken by instantly releasing air to achieve board placement. It is suitable for moving large or heavy workpieces, saving floor space and reducing overall costs.
Application Materials:
Application Scenarios:
Custom frame-type loading and unloading machines of different sizes are available for various products, and the parameters will vary accordingly. Please contact us.

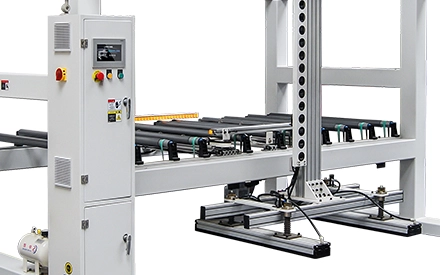

This loading and unloading machine has an integrated structure. The centering conveyor and electrical control cabinet are inherent components of the entire machine. Adopting a compact overall structure and centralized wiring layout eliminates on-site assembly and connection work between the conveyor and the electrical control cabinet. It saves space and on-site installation time, facilitates wiring protection and daily maintenance.

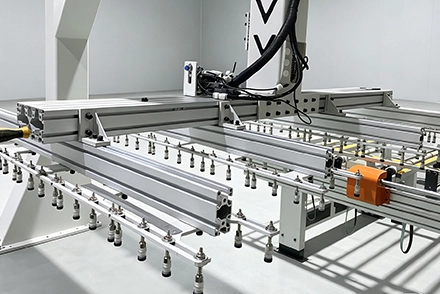

The suction parts are evenly arranged to form a balanced suction force on the entire surface of the board. It can prevent indentation deformation caused by concentrated point pressure when handling thin or easily deformed panels. By uniformly distributing the vacuum pressure, the instability caused by edge warping and corner leakage is effectively mitigated, ensuring safe and smooth operation throughout the entire loading and unloading process.

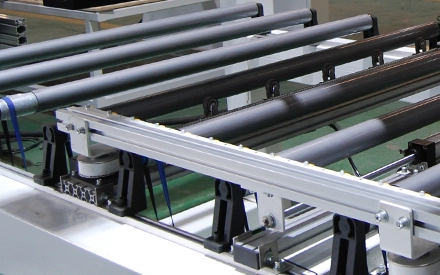

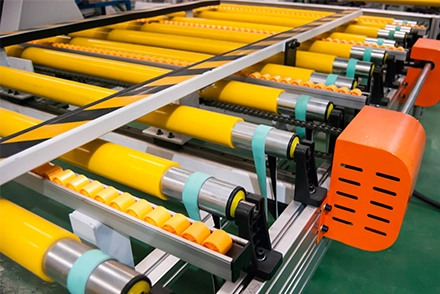

The stainless steel conveying rollers are fully wrapped with high-quality rubber. This soft rubber surface effectively prevents scratches to the workpiece during conveying. Meanwhile, the rubber layer offers good shock absorption and noise-reduction performance, reducing the operating noise of the entire machine and extending the service life of both the rollers and the conveyed products. The automatic centering mechanism automatically aligns the incoming workpiece.

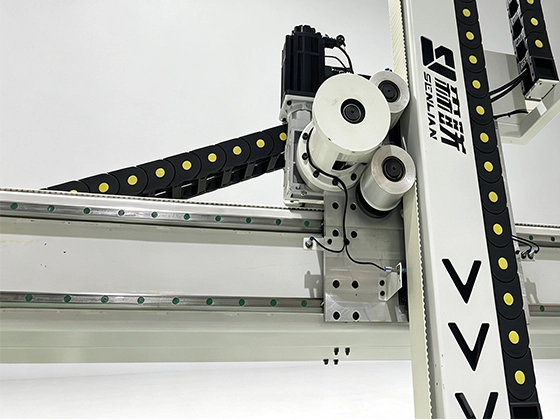

The frame-type loading and unloading machine is equipped with original ABBA linear guide rails as the core sliding guide components for the dual-axis moving structure. It can make the arm maintain smooth, jitter-free movement under long-hour, high-speed operation. Its high positional accuracy and excellent anti-deformation performance greatly extend the equipment's overall service life.

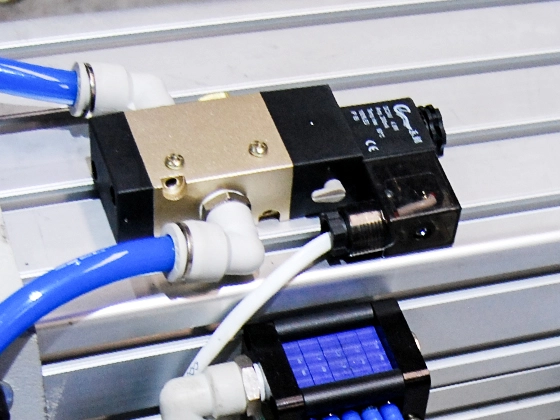

The frame-type loading and unloading machine is equipped with high-quality signal-controlled switch AIRTAC solenoid valves to precisely control the opening and closing of vacuum and air pipelines. The stable air path control effectively eliminates lag during product picking and placement, reduces the risk of mechanical collisions, and improves the machine's overall operational stability.

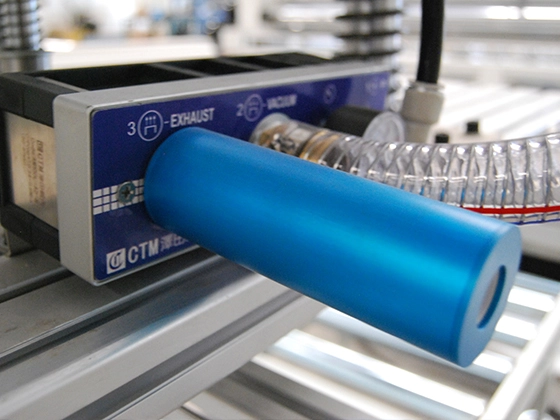

This high-performance, durable CTM vacuum generator provides stable negative pressure throughout the entire suction system. It can quickly generate sufficient airflow under vacuum in a short response time, providing strong and uniform suction. It also prevents micro-vacuum adhesion at the contact surface between stacked panels and prevents the machine from picking up two boards at once.

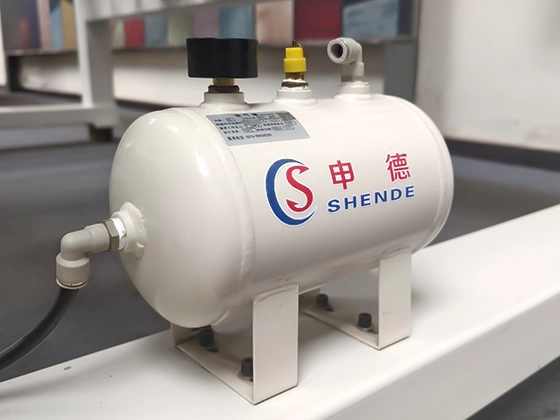

The frame-type loading and unloading machine has an exclusive air storage tank to balance the system air pressure. It offsets pressure fluctuations during rapid on-off cycling of pneumatic components, ensures stable operating pressure for vacuum adsorption units, prevents insufficient suction force, reduces pneumatic impact, and improves the reliability and smoothness of the entire pneumatic circuit.
