Model: SL-FCZ

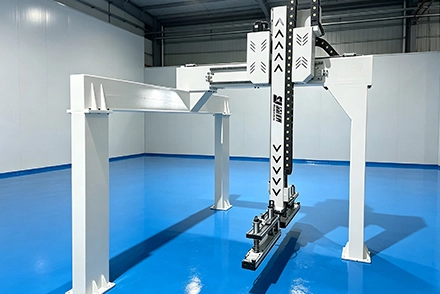

The automatic load and unload machine is based on a double-leg gantry frame structure. Vacuum suction cups or sponge strips are installed on the arm. It is precisely controlled by a PLC and servo motors to automatically load and unload workpieces onto the production line in a rhythmic, rainbow-like motion trajectory, replacing manual labor and improving efficiency.
Application Materials:
Application Scenarios:
Custom automatic load and unload machines of different sizes are available for various products, and the parameters will vary accordingly. Please contact us.

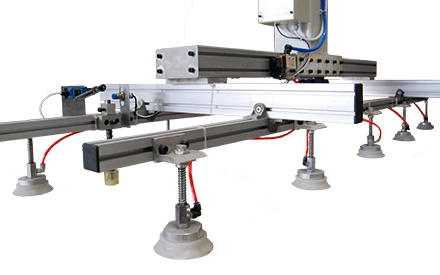

Ideal for smooth, flat panel surfaces, such as flat calcium silicate boards, cement fiberboards, MDF, particleboard, steel plates, aluminum plates, etc., ensuring a stable grip without damaging workpieces.

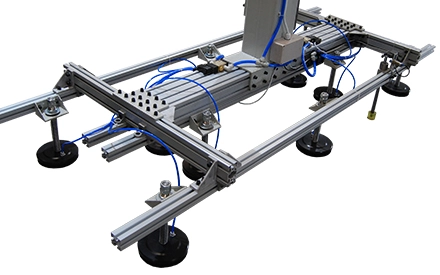

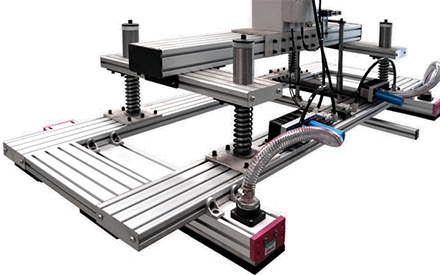

Suitable for uneven or slightly textured surfaces, such as solid wood boards, veneer boards, slightly uneven or warped calcium silicate boards, cement fiberboard, MDF, particleboard, etc. The sponge material can fit irregular workpieces.

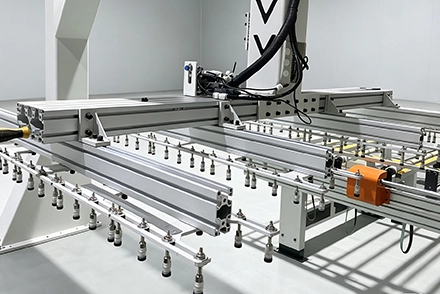

Designed specifically for large, irregular, or porous panels, especially solid wood boards, thick boards, large-size milled door panels, honeycomb panels, etc., it provides a larger contact area and better vacuum retention, and the high-density sponge will not leave marks on the surface.

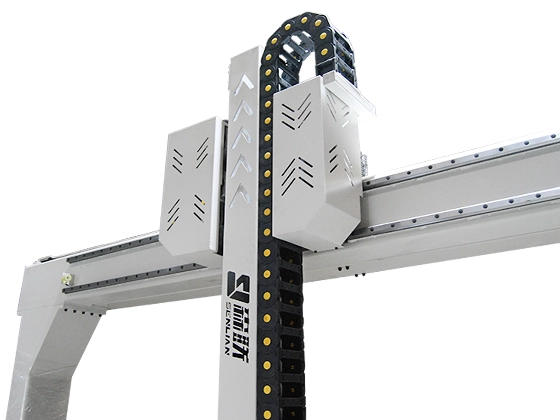

This machine features a dual-axis motion structure, smooth linear guides and is driven by a PLC and servo motors. This design eliminates collisions during buffer-free operation and achieves precise, fast rainbow motion. Its unique rainbow motion path improves overall processing efficiency while eliminating corner stops and pauses during lifting and horizontal translation, thereby minimizing vibration.

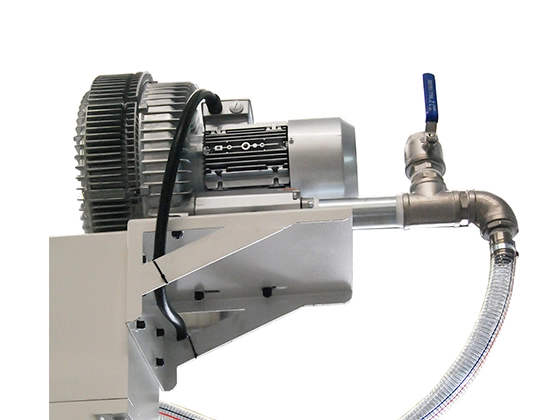

This whirlpool fan works in conjunction with the vacuum generator mounted on the suction cup assembly to deliver stable, reliable negative-pressure adsorption performance. During automatic board loading and unloading, coordinated operation ensures the suction cup arm firmly grips the workpiece, preventing displacement or drop caused by unstable air pressure during rapid lifting and movement.

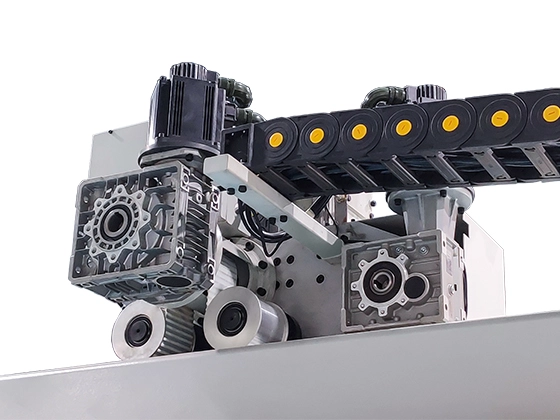

Delta servo motors drive the robotic arm for lateral movement and vertical lifting, enabling dual-axis linkage and millimeter-level precise positioning. The entire motion trajectory is smooth and stable, without vibration or deviation. It features soft-start and soft-stop buffer control, making movements slow and gentle during board gripping and release, protecting the board from impacts.

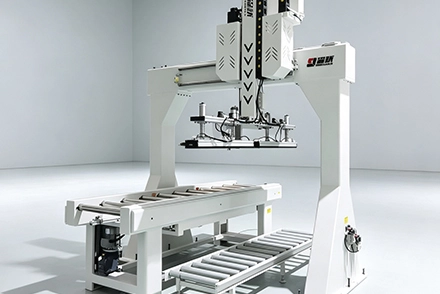

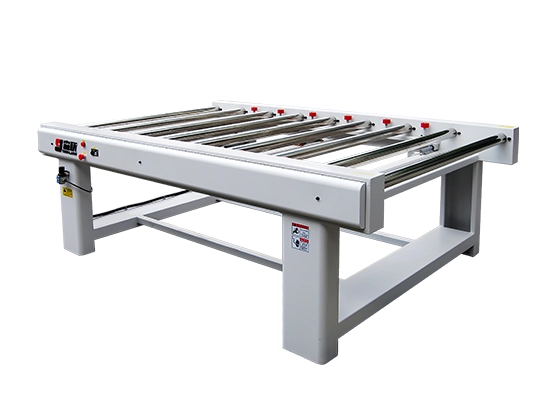

This machine includes an independent automatic centering conveyor. When a product is conveyed or placed in the conveyor's working position, the circular rollers on both sides automatically and synchronously move toward the center to correct the product's position. Combined with the suction cup arm, this improves the overall automation and continuity of the production line.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.
Customize automatic load and unload machines to fit the dimensions of your products and spaces.
Customize automatic load and unload machines to meet different specifications and space planning requirements.
Customize automatic load and unload machines to accommodate different products and weights.
Customize automatic load and unload machines for different application requirements.
Customize automatic load and unload machines to optimize electricity consumption across different countries.
