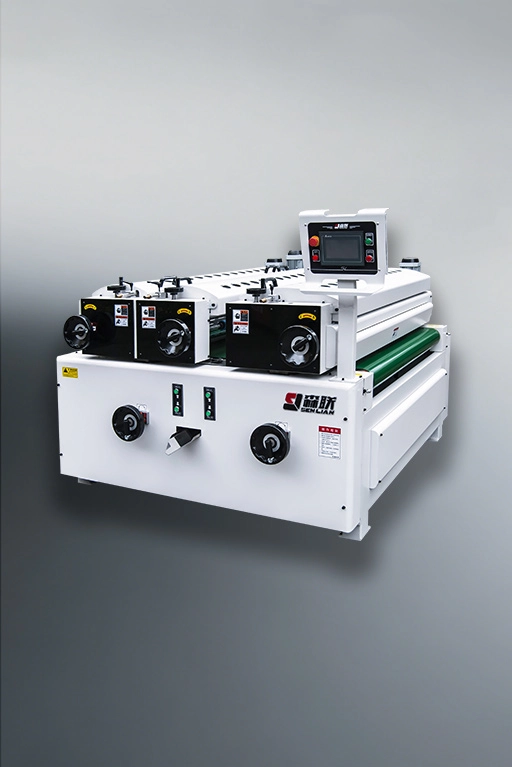

Model: SL-TRD
The roller coating machine is widely used for coating flat products. A rubber roller and a doctor steel roller form a coating unit. The machine pumps the liquid paint, then recycles it, evenly coating the flat surface. All power parts are controlled by frequency conversion. The HMI touchscreen enables intuitive, efficient control of the entire roller coating machine.
Application Materials:
Application Coatings:
Custom roller coating machines of different sizes are available for various products, and the parameters will vary accordingly. Please contact us.

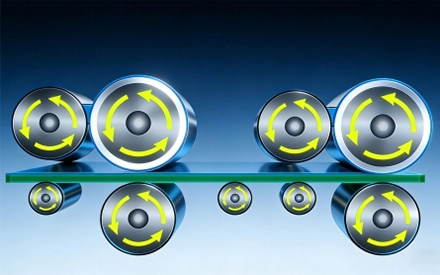

The roller coating machine has a liquid coating circulation function, which increases the coating utilization rate to 99% through the body's return coating groove and high-flow pump. The use of liquid coating reduces the emission of volatile organic compounds and reduces air pollution.
The stable mechanical structure ensures the precise coating of various flat products. The main moving parts all use separate motors, reducers, and frequency-conversion control, providing the best accuracy and stability. Customized roller coating machines can achieve coating accuracy within 7.5%.

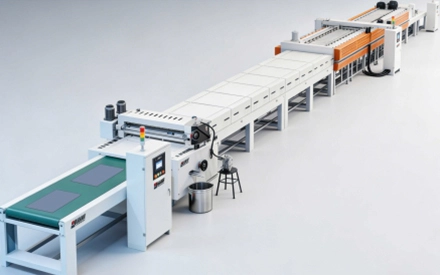

Equipped with an automatic control system, the roller coating machine reduces manual intervention, can be seamlessly connected to paint drying ovens and surface treatment equipment to achieve continuous production. Customized roller coating machines can reach production speeds of up to 60 m/min.

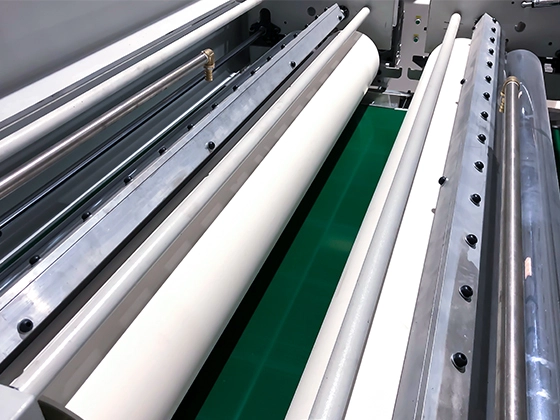

EPDM rubber rollers, due to their highly saturated molecular main chain structure, possess strong chemical stability and excellent resistance to solvents and corrosion, and are not easily swollen by solvents. Every rubber roller is made by a standard process and strict checks, grinding the middle to a higher precision to ensure the entire roller coating is evenly distributed.

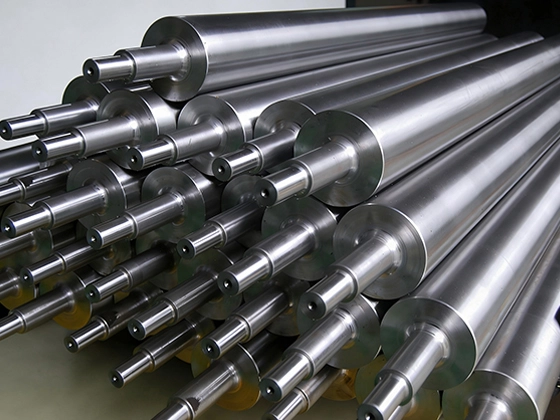

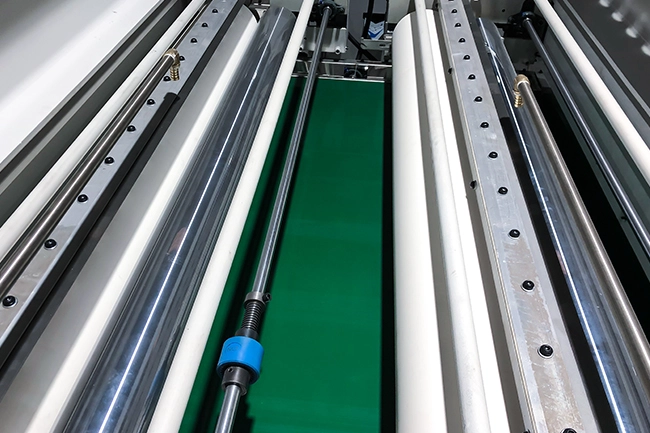

Chrome-plated steel cylindrical rollers are manufactured through multiple precision machining processes. After electrolytic polishing and hard chrome plating, the roller's surface roughness is maintained at Ra≤0.8μm, featuring excellent wear resistance and surface flatness. By adjusting the gap between the roller and the application roller, the coating film thickness can be precisely controlled.

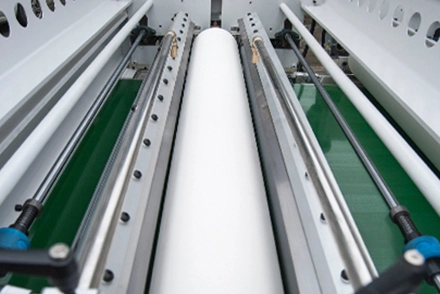

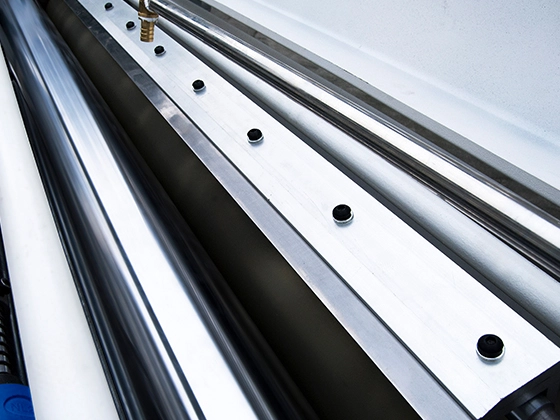

Equipped with a high-precision adjustable steel scraper, a micro-adjustment mechanism allows precise control of the gap between the scraper and the roller surface with minimal tolerance, efficiently removing excess coatings and forming a uniform, dense thin coating layer on the roller surface, preventing uneven coating or color differences caused by the roller coating machine.

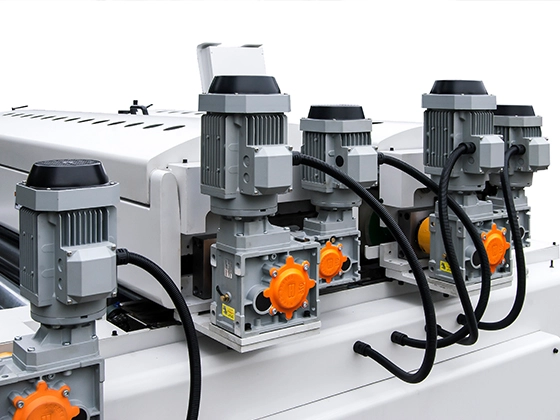

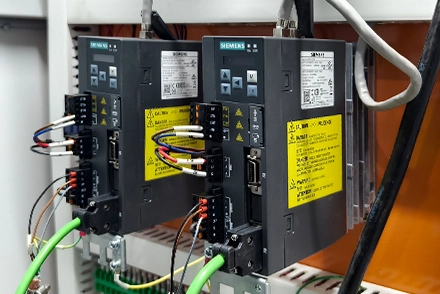

Adopting a modular, independent transmission design, each core transmission component is equipped with an exclusive drive motor and precision reducer, ensuring one-to-one matching between the power source and the transmission link, avoiding power loss and interference caused by multi-component linkage, and achieving the continuous and stable coating process.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.
Customize roller coating machines to fit the dimensions of your products and spaces.

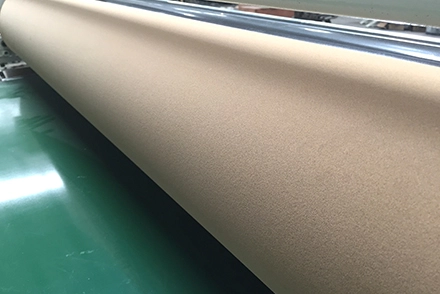

Customize roller coating machines to fit different base materials and paints.
Customize roller coating machines to achieve different coating effects and thickness.

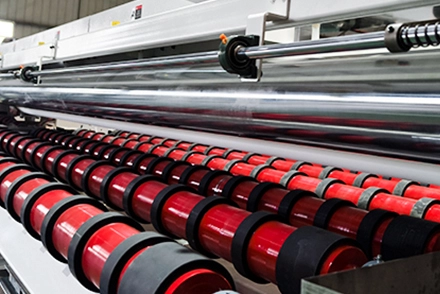

Customize roller coating machines for different products and conveying requirements.

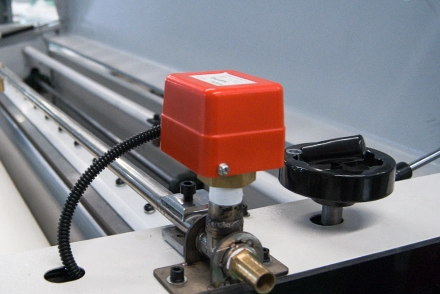

Customize roller coating machines to meet diverse functional and application needs.
Customize roller coating machines to optimize electricity consumption across different countries.
