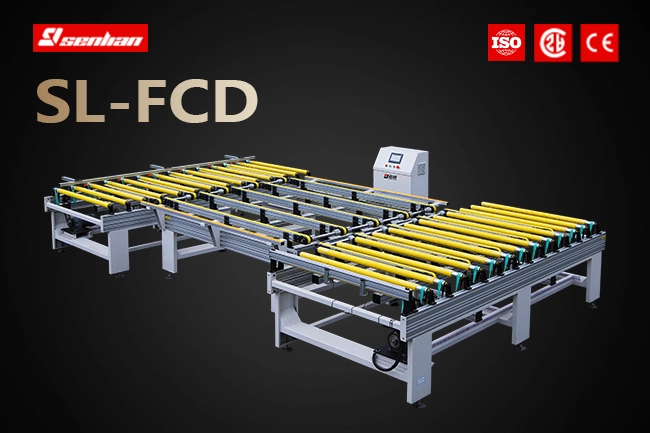

Model: SL-FCD

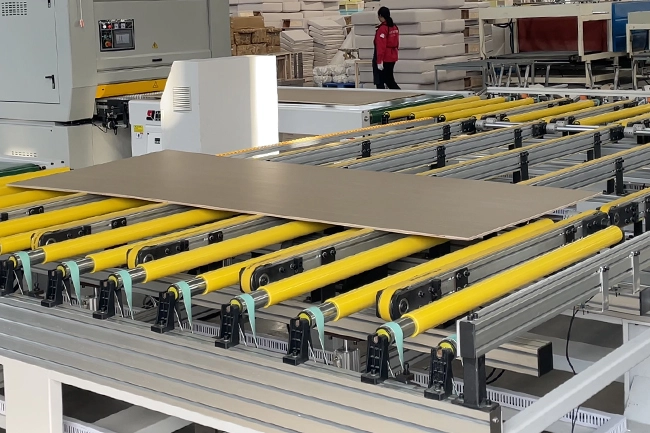

The automatic parallel translation conveyor consists of three specialized conveyors. It lifts workpieces and shifts them horizontally between production lines: the workpiece is elevated by the first roller conveyor, transferred to the middle belt conveyor, then delivered to the opposite roller conveyor, before being lowered for onward transport. It resolves linear space constraints to enable cross-line product transfer.
Application Materials:
Application Scenarios:
Custom automatic parallel translation conveyors of different sizes are available for various products, and the parameters will vary accordingly. Please contact us.

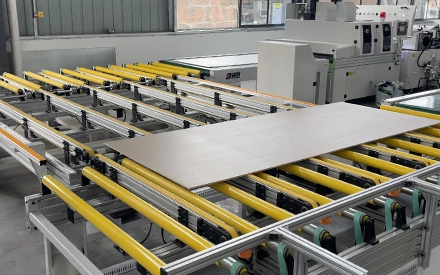

When the actual on-site length cannot meet the installation and operating requirements of the complete production line, this machine can effectively address this issue by adjusting the product conveying direction via transferring products to adjacent production lines. It can save production space while ensuring the continuous operation of the production line.

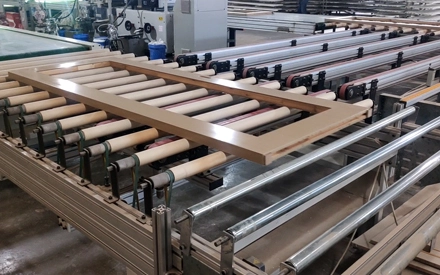

The automatic parallel translation conveyor also has a variety of process functions, such as transferring defective products midway along the production line for timely rework. When different products need to share a primer coating line, this machine can transfer them to the corresponding topcoat coating line, saving manpower and production time.

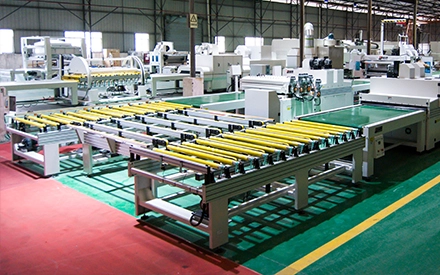

This machine has a wide range of applications, including producing wooden doors, furniture panels, decorative materials, metal sheets, and ceramic sheets. It can complete tasks with high quality and quantity. It can transport a single workpiece or multiple workpieces in parallel. Compared with the time-consuming, labor-intensive manual moving of workpieces, it is more efficient and lower-cost.

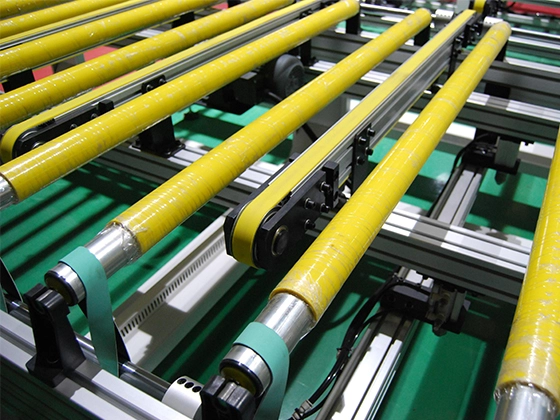

It adopts solid rollers matched with belt transmission. The solid roller structure delivers strong load-bearing capacity and excellent wear resistance. It operates reliably under continuous operation, effectively preventing deformation during lowering and conveying. It also ensures smooth transport and full protection of workpieces.

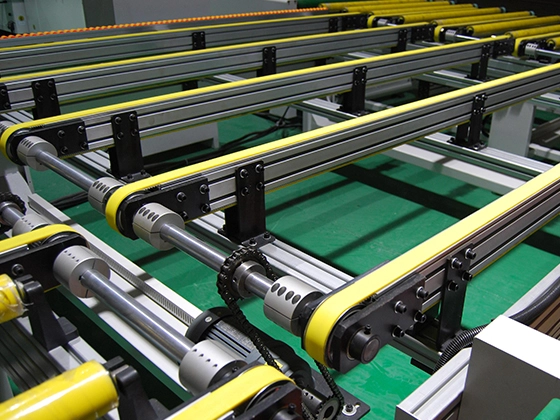

It uses a high-elasticity yellow polyurethane strip conveyor belt, which offers excellent solvent resistance, wear resistance, tensile strength and anti-slip properties. The strip structure distributes the force over the contact surface. During lifting and translation, the workpiece can be securely attached to the conveyor belt to prevent slippage.

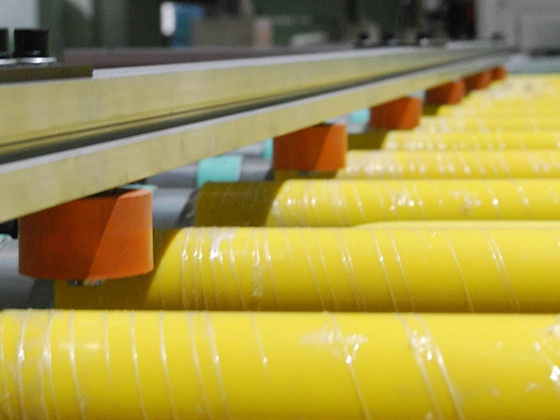

Equipped along the machine sides, the edge collision cushion serves as an effective protective component. It can absorb impact force when workpieces contact the machine body, preventing edge damage and protecting the appearance of the finished products. Meanwhile, it also ensures the safe and stable operation of the entire machine.

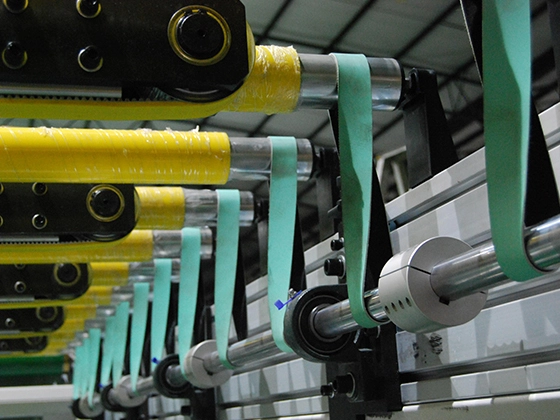

Our automatic parallel translation conveyors are equipped with segmented opening and closing couplings, eliminating the need for complex disassembly tasks. This allows operators to easily and quickly replace the base belt. This effectively shortens maintenance downtime, improves work efficiency, and avoids production cycle delays.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.
Customize automatic parallel translation conveyors to fit the dimensions of your products and spaces.

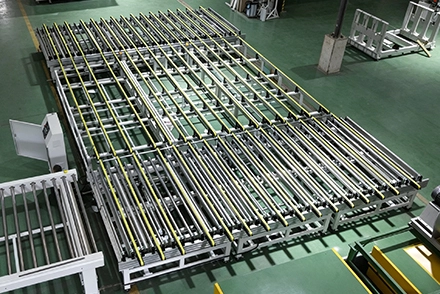

Customize automatic parallel translation conveyors for different application requirements.
Customize automatic parallel translation conveyors to optimize electricity consumption across different countries.
