Model: SL-TLSU
The curtain coating machine draws the liquid paint from the paint box into the precise knife bit and down like a waterfall as the materials pass through the paint curtain on the conveyor at high speed. This type separates the conveyors from the machine body, preventing any shaking that could affect the waterfall coating effect and avoiding waves and uneven coating.
Application Materials:
Application Coatings:
Custom curtain coating machines of different sizes are available for various products, and the parameters will vary accordingly. Please contact us.
When high-quality coatings are combined with curtain coating processes, they can impart excellent surface effects and coating performance to raw materials, resulting in wear resistance, resistance to yellowing, strong adhesion, and a hardness of 2-4H (adjustable depending on the coating type).

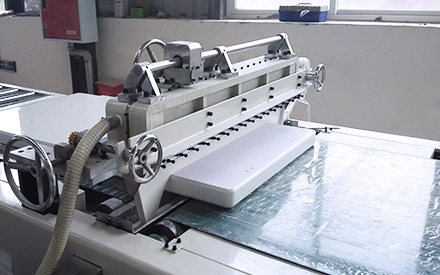

The curtain coating machine requires only 1-2 general workers to complete the order that would traditionally require 5-10 professional painters using manual spraying or brushing, significantly increasing daily output, ensuring consistent product quality, and reducing comprehensive production costs.
The curtain coating machine is compatible with various UV and polyurethane coatings, including clear coats, primers, colored paints, and topcoats, meeting the application requirements of industries such as furniture, building materials, electronics, decoration, and automotive, offering high flexibility.

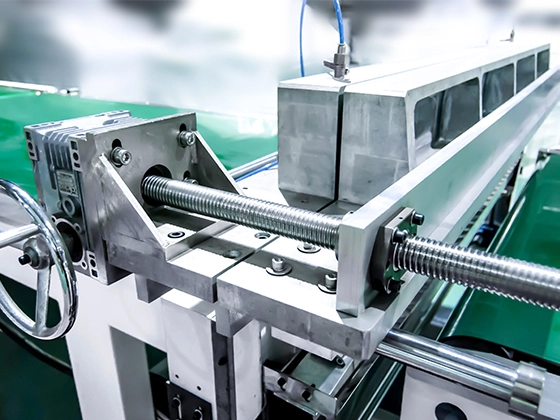

The main knife body uses a mechanical flip-style tool bit rather than a traditional air-cylinder type. Fine manufacturing allows one wheel to adjust the wider curtain coating machine, enabling the paint waterfall to be evenly and easily distributed. More screws on the knife allow more precise adjustment of coating thickness, especially for wide-board coating. A larger knife paint cavity can support greater paint flow.

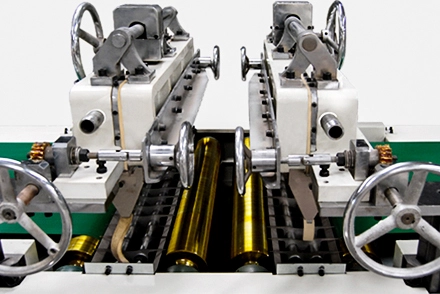

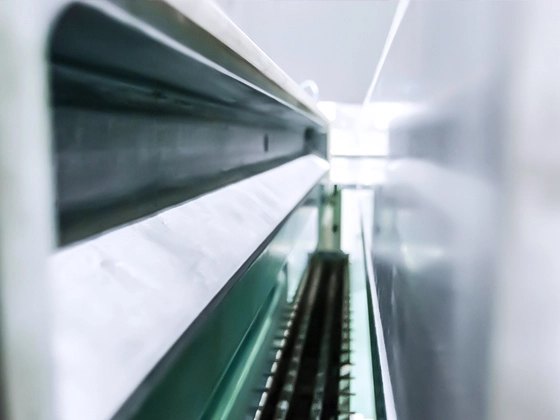

The aluminium alloy knife body of our curtain coating machine is precision-manufactured with T6 heat treatment, surface planishing, and electroplating. Automatic planishing equipment ensures the knife surface is extremely even, maintaining a consistent paint-coating thickness. The main parts of the knife are electroplated to prevent rusting and ensure long-term operation.

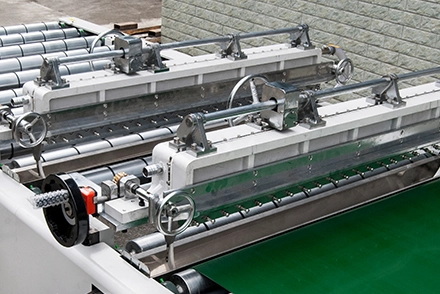

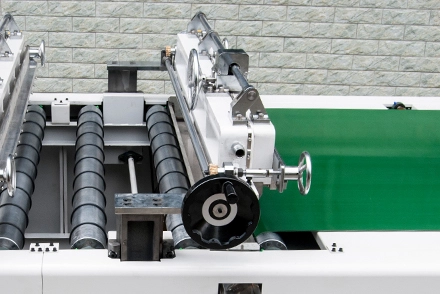

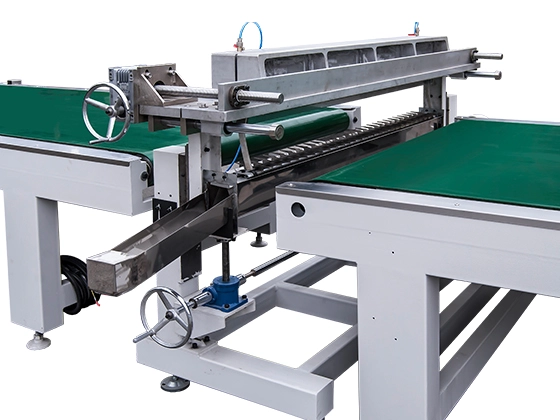

The curtain coating machine comprises three parts: two conveyors and an independent knife body. The conveyors automatically detect the board position and adjust the conveying speed accordingly, while the independent knife body precisely adjusts the knife head height via lifting and lowering mechanisms, or adjusts the gap between the knife heads to control coating thickness and achieve various coating effects.

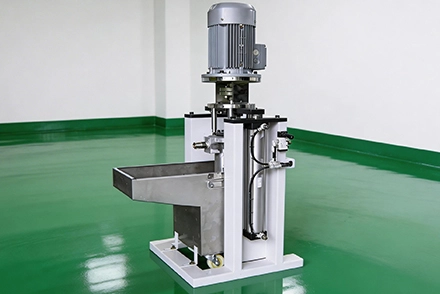

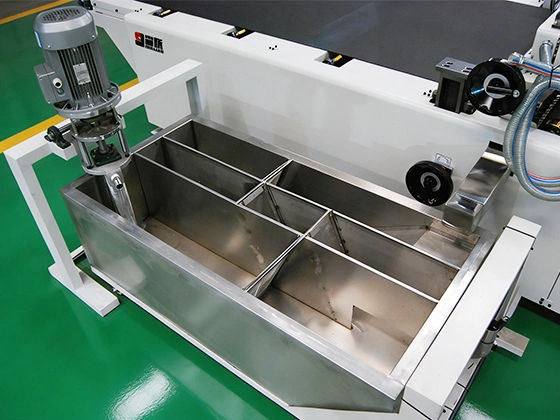

Our curtain coating machines offer a choice of a large-flow paint heating and filtering box or a small-flow paint filtering box to match the different characteristics of UV or polyurethane coatings. They ensure that air bubbles and other impurities are removed from the paint before use, while the low-speed, heavy-duty impeller pump ensures a stable supply to the machine's knife body.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.
Customize curtain coating machines to fit the dimensions of your products and spaces.
Customize curtain coating machines to achieve different coating effects and thicknesses.
Customize curtain coating machines to fit different paint features.
Customize curtain coating machines for different application requirements.
Customize curtain coating machines for different products and coatings.
Customize curtain coating machines to optimize electricity consumption across different countries.
